AC DC Oil Hipot Tester above 15KVA to 300KVA

Name: AC DC Oil Hipot Tester above 15KVA to 300KVA
Brand: Huaying
Price: 818 USD

Buy cheap AC DC Oil Hipot Tester above 15KVA to 300KVA product

Brand Name : Huaying

Model Number : Huaying Series

Certification : ISO

Place of Origin : Wuhan Hubei China

MOQ : 1 Set

Price : whhy818@163.com

Payment Terms : T/T L/C

Supply Ability : 200 sets per month

Delivery Time : 7 Working Days

Packaging Details : Wooden Case

Contact Now

1. Product Name:

AC DC Oil Hipot Tester above 15KVA to 300KVA

2. Equipment Description:

Hipot Tester is applied in power system for insulation test of high voltage equipment.

The typical application of the HIPOT tester is as follow:

1)Power Transformer AC high voltage withstand test

2)Circuit Breaker AC high voltage withstand test

3)High voltage motors high voltage withstand test

4)Voltage/current transformer high voltage withstand test

5)High voltage power source for calibration of high voltage meter

3.Technical Parameters:

YDJ- AC Oil Hipot Tester

YDJZ-AC DC Oil Hipot Tester

Model	Max output capacity KVA	Max high voltage output KV	Max current in hv circuit MA	Voltage current input of voltage booster V	Voltage current input of voltage booster A	Ratio
YDJ(Z)-1.5/50	1.5	50	30	200	7.5	500
YDJ (Z) -3/50	3	50	60	200	15	500
YDJ (Z)-5/50	5	50	100	200	25	500
YDJ (Z) -10/50	10	50	200	220/380	50/26	500
YDJ (Z) -20/50	20	50	400	380	53	500
YDJ (Z) -30/50	30	50	600	380	79	500
YDJ (Z) -40/50	40	50	800	380	105	500
YDJ (Z) -50/50	50	50	1000	380	132	500
YDJ (Z) -5/100	5	100	50	200	25	1000
YDJ (Z) -10/100	10	100	100	200/380	50/26	1000
YDJ (Z) -20/100	20	100	200	380	53	1000
YDJ (Z) -30/100	30	100	300	380	79	1000
YDJ (Z) -40/100	40	100	400	380	105	1000
YDJ (Z) -50/100	50	100	500	380	132	1000
YDJ (Z) -100/100	100	100	100	500	263	1000
YDJ (Z) -150/100	150	100	1500	500	300	1000

Kindly Note:

The capacity and maximum voltage output could be customized according to the requirements of customer if you can not find the right one in the above table.

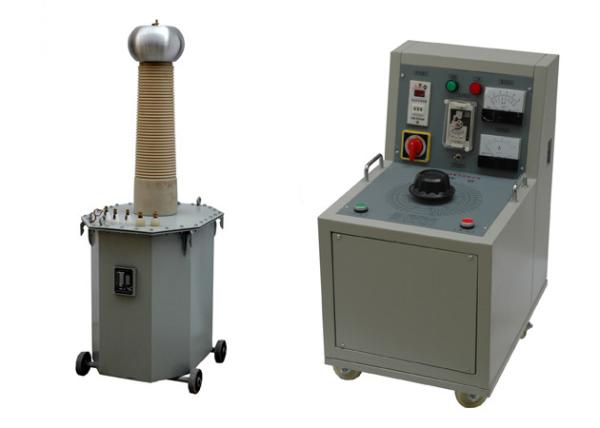

4. Product Picture:

AC DC Oil Hipot Tester above 15KVA to 300KVA Images
