Power Factor Tangent Delta Tester

Name: Power Factor Tangent Delta Tester
Brand: Huaying
Price: 126. USD

Buy cheap Power Factor Tangent Delta Tester product

Place of Origin : Wuhan Hubei China

Brand Name : Huaying

Certification : ISO

Model Number : HYGS

MOQ : 1 Set

Price : primarytester@126.com

Packaging Details : Wooden Case

Delivery Time : 7 Working Days

Payment Terms : T/T L/C

Supply Ability : 200 sets per month

Contact Now

1. Product Name:

Power Factor Tangent Delta Tester

2. Equipment Description:

HYGS automatic tangent delta tester is applied to measure the dielectric loss and capacitor value of insulation materials in high voltage power equipment. The non-power frequency voltage source is integrated in the tester to avoid power frequency interference. That make the tester has a good performance in measurement precision.

3.Technical Parameters:

1 Measurement error:

Capacitor value: 1%RDG+5pf

Tangent delta: 1%RDG+0.04%

2 Output voltage:AC 0.5kV~10KV

3 Testing voltage setting resolution: 0.5kv

4 Maximum output capacity: 200mA

5 Testing frequency: 45Hz/55Hz

6 Test mode: fully automatic

7 Power supply: AC220V±10 % 50Hz/60Hz

8 Environment temperature: 0~50°C

9 Humidity: ≤85%RH

10 Weight:40KG

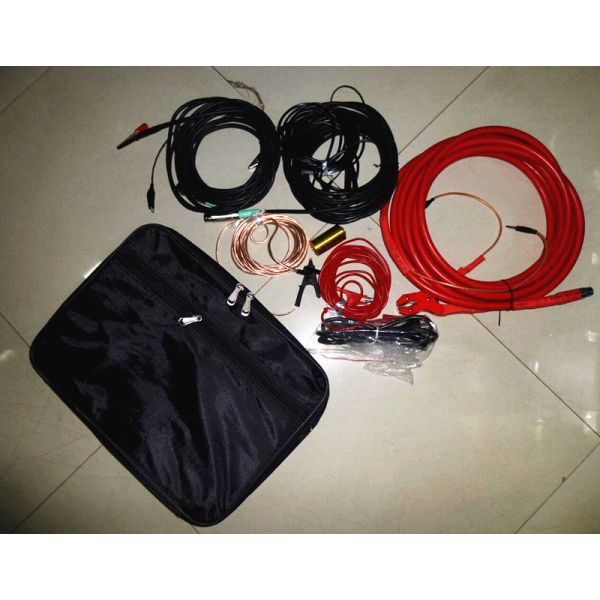

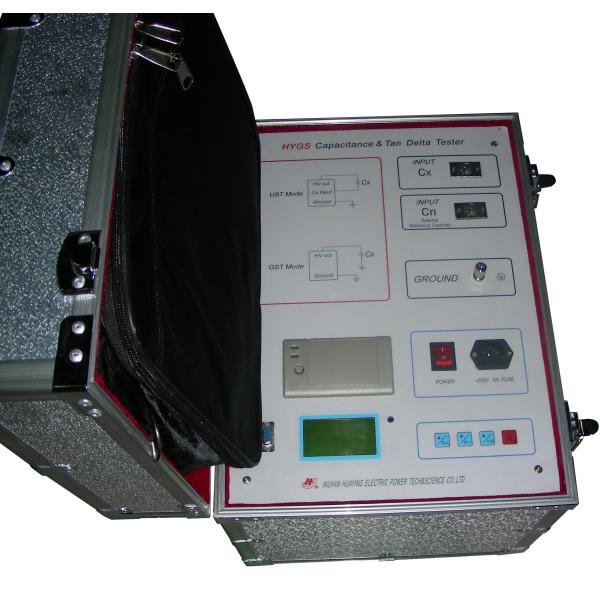

Power Factor Tangent Delta Tester Images
